Overall Length
-
6"
Overall Height
-
1-3/8"
Maximum Load In Lbs. Non-Impact Machinery
-
400
Maximum Load In Lbs. Impact Machinery
-
250

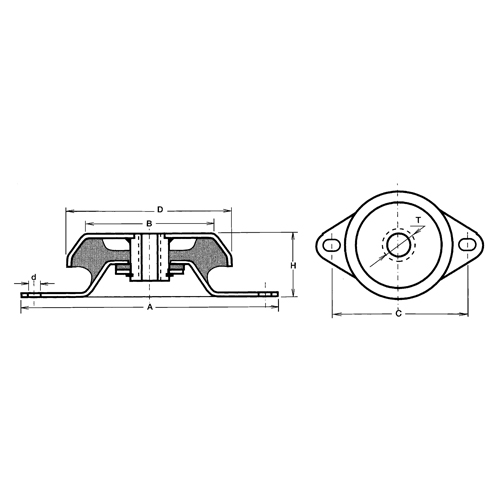

Mount Dimensions In Inches A
-
6
Mount Dimensions In Inches B
-
2.75
Mount Dimensions In Inches C
-
5
Mount Dimensions In Inches D
-
3.625
Mount Dimensions In Inches H
-
1.375
Mount Dimensions In Inches T
-
41276
- High vibration dampening characteristics
- Fail-safe, rugged interlocking metal and neoprene construction provides exceptional performance against shear and compression forces and flexible vertically and stable horizontally
- Metal cupmount component is cold-rolled steel coupled with an elastomer-in-compression design
- High-grade neoprene elastomer provides resistance to oil and ozone
- Each side flange has through holes allowing for effective attachment to supporting equipment structure
