Model:
Your Model No.:
Mfr. No.:
Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.
Overall Width
-
3.93"
Overall Length
-
5-9/10"

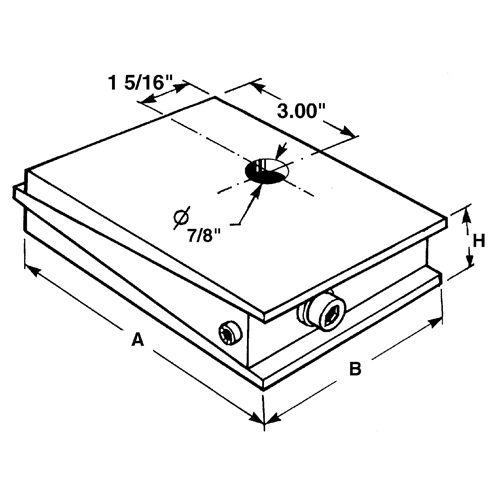

A Mm
-
150
B Mm
-
100
H Mm
-
40+/-5
Max. Load Lbs.
-
15000

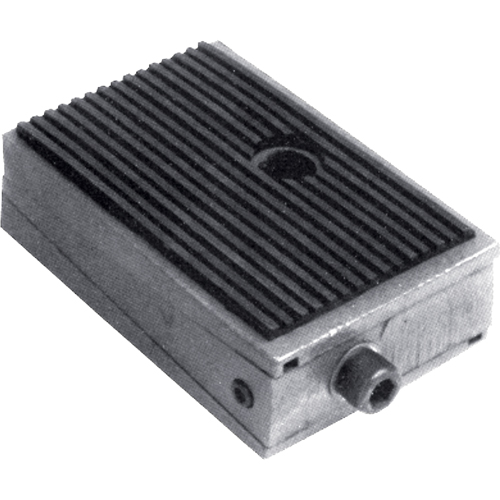

- Designed for the installation and precision levelling of heavy industrial machinery
- 3 machined wedges are mounted and held together by a horizontal adjusting bolt
- A lock screw secures the mount in the levelled position
- A special opening allows for bolting of the machine to the floor Note: Max. levelling is 1/4" (6 mm). If more height is required use a shim plate.
